Descriptions:
Please noted: 63A With N 220V for 3*220V+N, Dispaly each phase 220V.

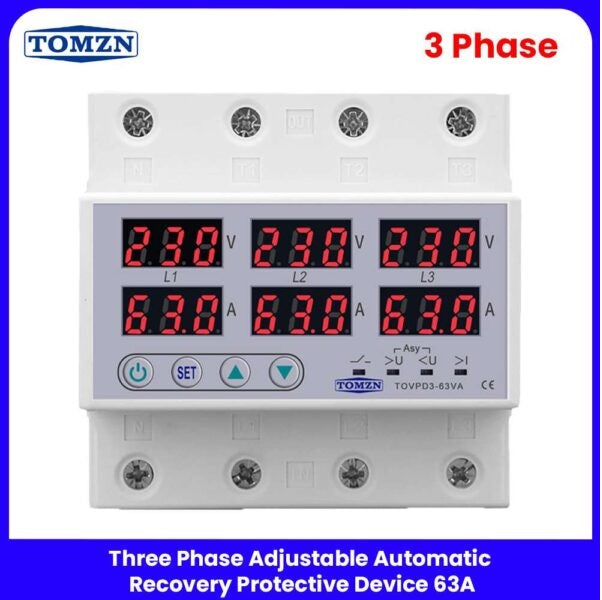

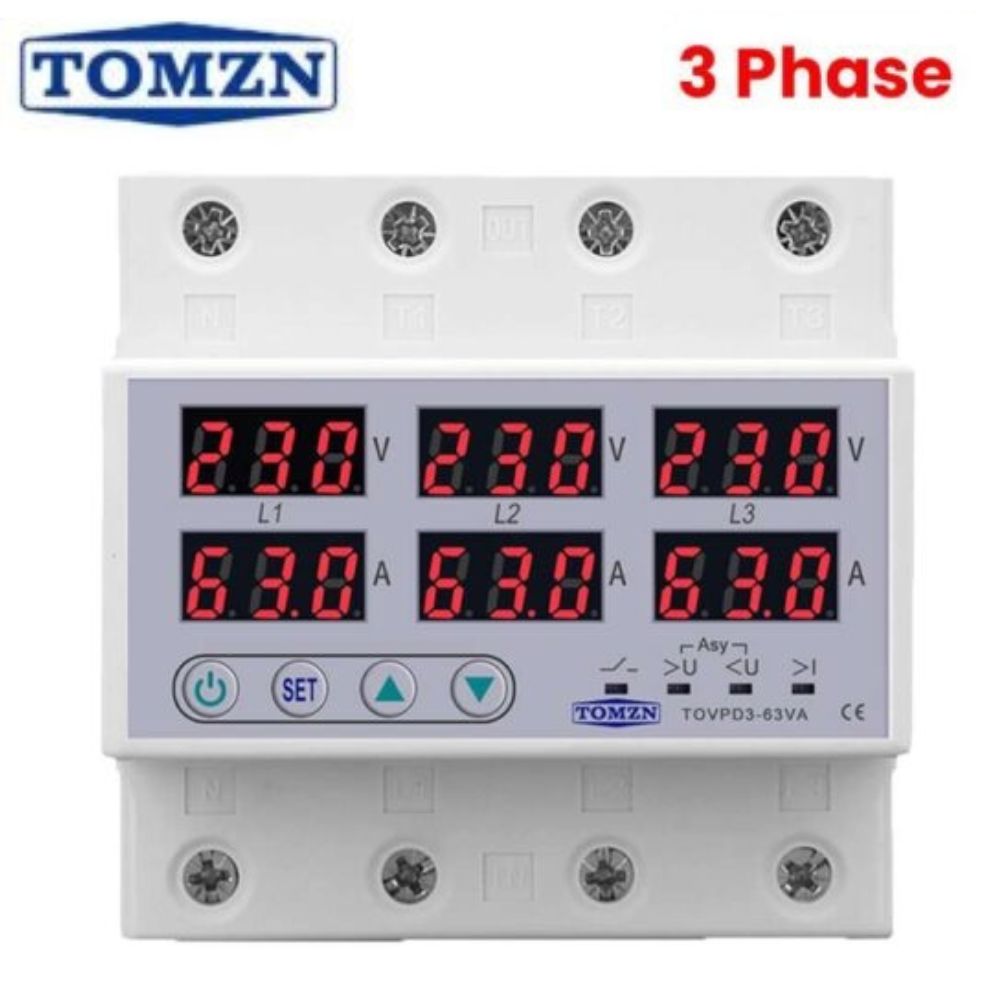

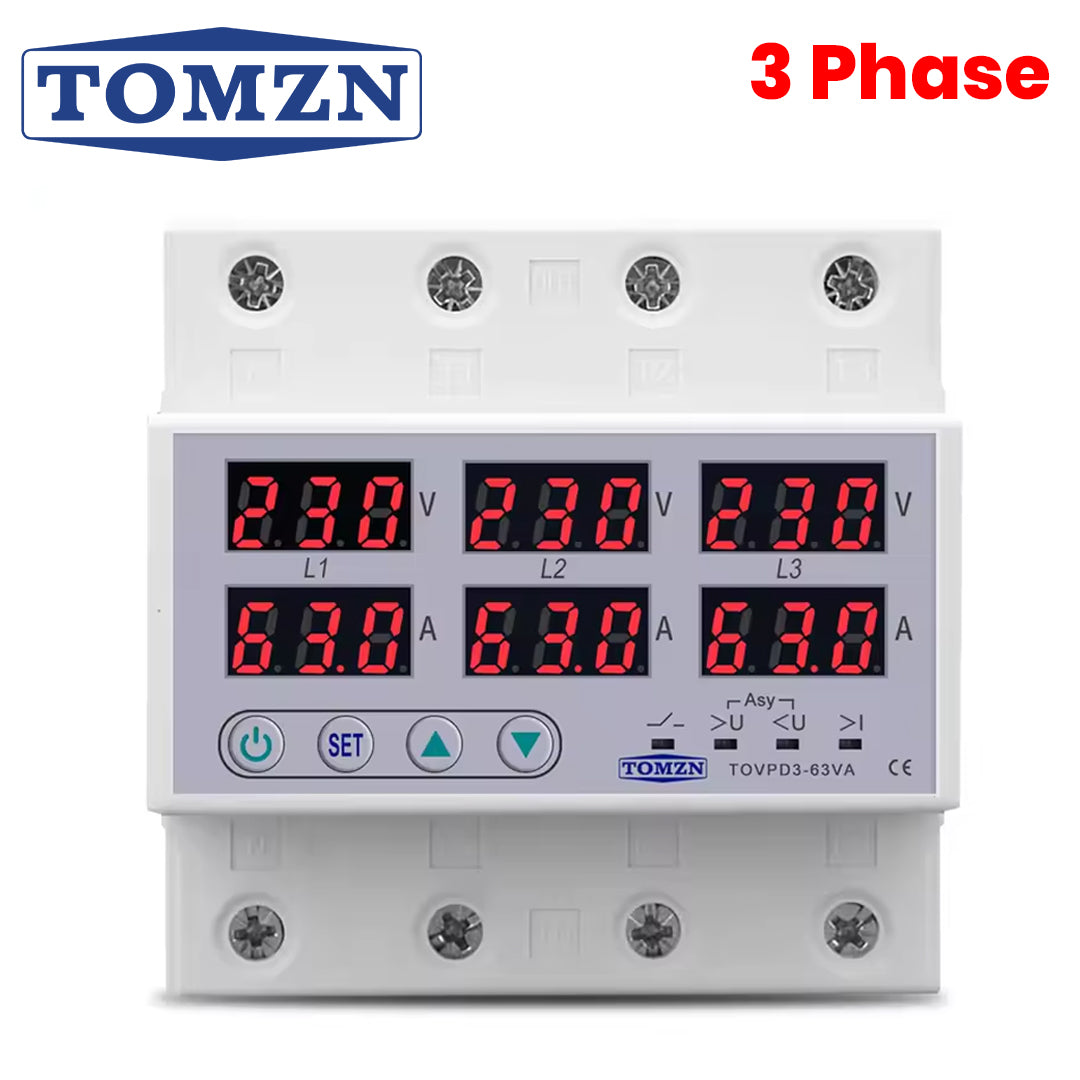

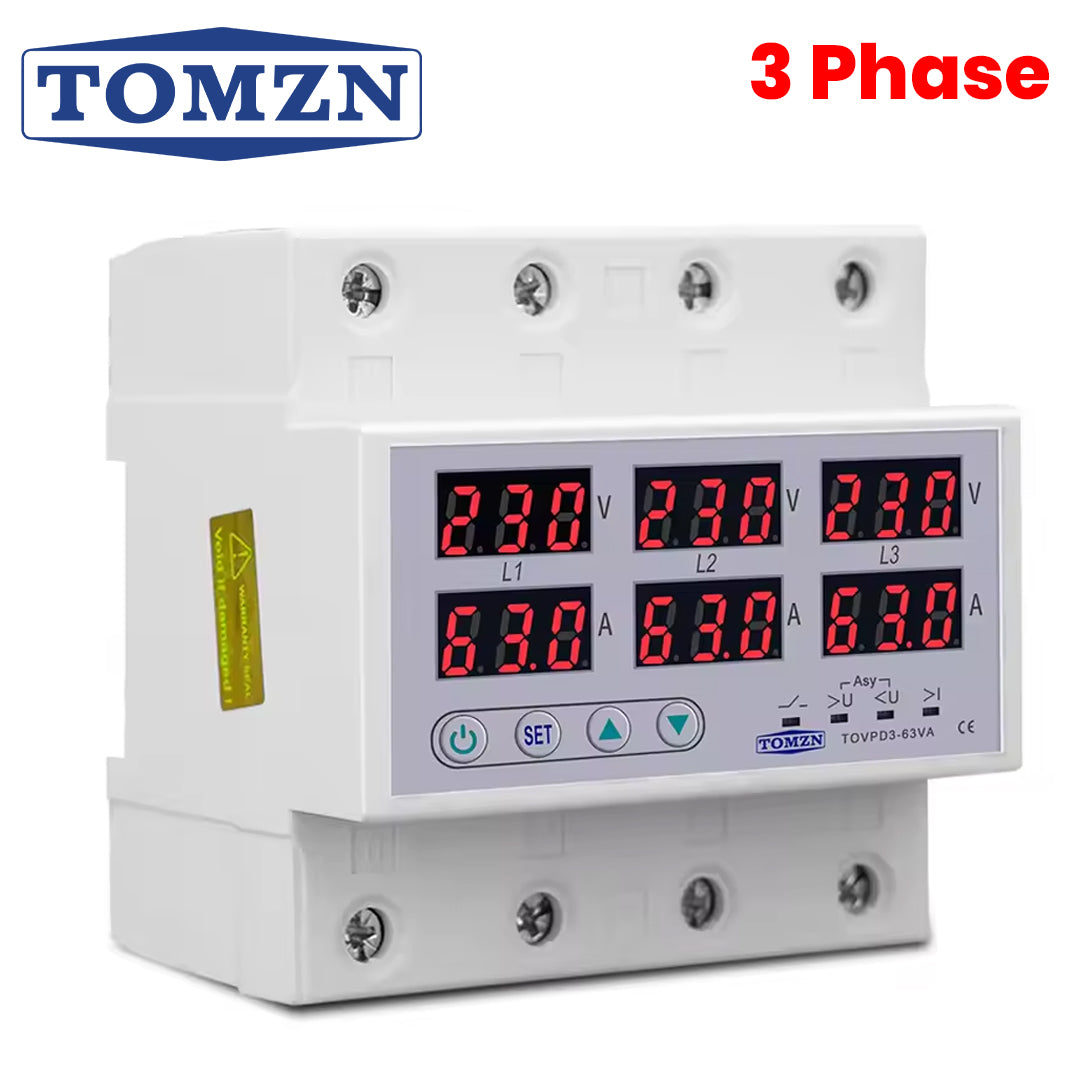

Three phase Voltage Current Relay Protector 63A 220V 3P+N Over Under Voltage Relay Current limiter adjustable.
Over-voltage protection: Adjustable .Under-voltage protection: Adjustable .Over-Current protection: Adjustable.
Asymmetry protection. Phase squence protection.
Active time and reconnect time adjsutable. Voltage and current can be manually calibrated
Code: Parameter, Value
P1: Power On Time, 1-500S
U1: Over Voltage , 230-300V
U2: Recovery Voltage , 220-295V
U3: Recovery Time , 1-500S
U4: Power Off delay Time , 0.1-30S
U5: Under Voltage , 140-210V
U6: Recovery Voltage , 145-215V
U7: Recovery Time , 1-500S
U8: Power Off delay Time , 0.1-30S
U9: Voltage Deviation , -9.5 to 9.5%
U10: Asymmetry , 20-99V
U11: Phase squence protect , on/off
C1: Over Current , 3-63A
C2: Recovery Time, 1-500S
C3: Power Off delay Time, 0.1-30S
C4: Current Deviation, -9.5 to 9.5%
C5: Continues Over Current Times, 1-20 off
size: 91 x 67 x 90mm
Material: PC plastic
colour: grey + white
Package Contents:
1 x Voltage protector
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
