TOMZN WiFi Smart Breaker Multi-Function Protector 63A | Voltage, Current & kWh Monitoring | Load Cut-Off Limit Feature | Tuya & Alexa Compatible

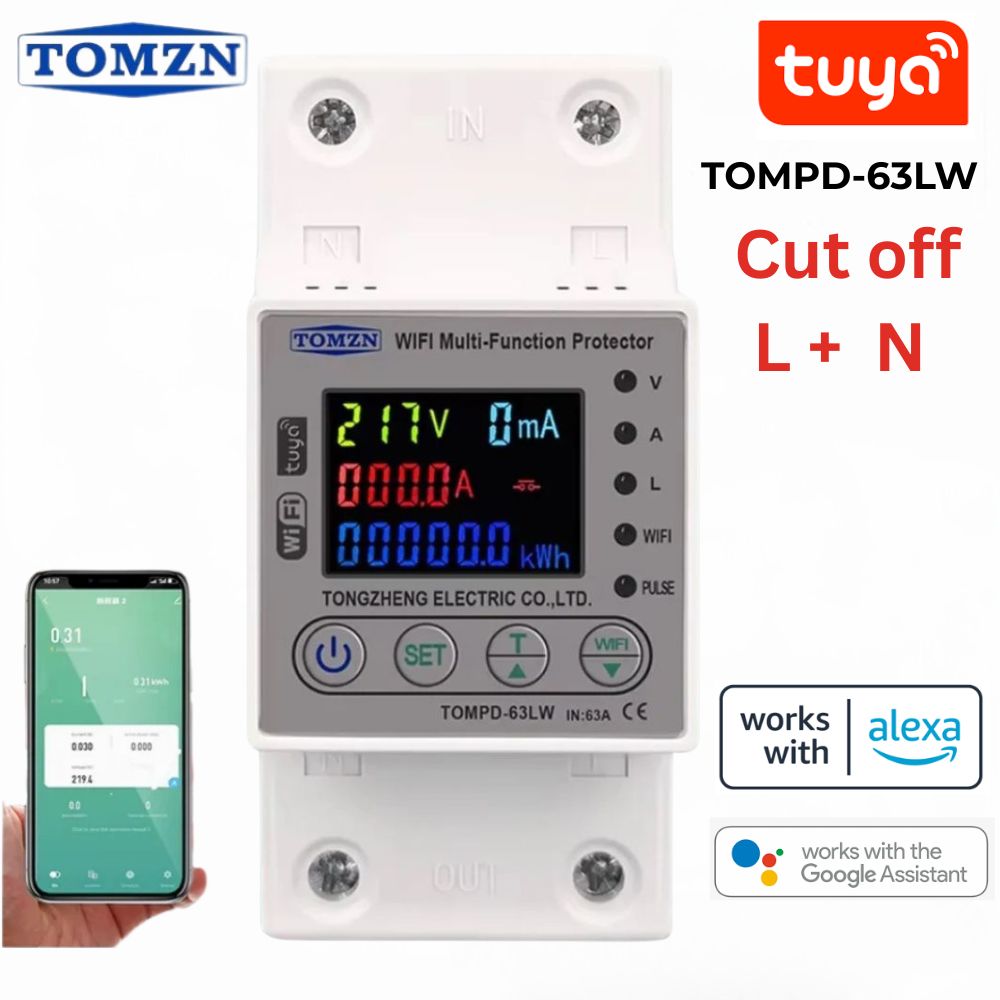

TOMZN 63A WiFi Multi-Function Protector – TOMPD-63LW

Monitor and control your electrical load from the Tuya Smart / Smart Life app while viewing key electrical values on the built-in display. This DIN-rail device is designed for smart monitoring and adjustable protection of supported single-phase loads.

Key Features

• Remote ON/OFF control through Tuya Smart / Smart Life.
• Real-time monitoring of voltage, current, power and energy usage (kWh).
• Adjustable protection settings for over-voltage, under-voltage and over-current.
• Load cut-off / energy limit function for supported usage-control scenarios.
• Timer function through the app.
• Alexa & Google Assistant compatibility for supported voice-control functions.
• 2.4GHz WiFi; 5GHz WiFi is not supported.

Specifications

• Model: TOMPD-63LW
• Rated voltage: 230V AC
• Frequency: 50/60Hz
• Maximum current setting: up to 63A
• Under-voltage range: 140–210V adjustable as listed for this model
• Over-voltage range: 225–295V adjustable as listed for this model
• Over-current range: 1–63A adjustable as listed for this model
• Reconnect delay: 1–500 seconds adjustable
• Mounting: DIN rail
• WiFi: 2.4GHz

Installation & Safety

This product is intended for mains-voltage distribution equipment and should be installed by a qualified electrician. Confirm conductor size, breaker/protection coordination, load type and local electrical requirements before installation. Do not exceed the device's rated limits.

7-Day Check & Replacement

Manufacturing fault or DOA items can be reported within 7 days for replacement, subject to the store's replacement policy.
